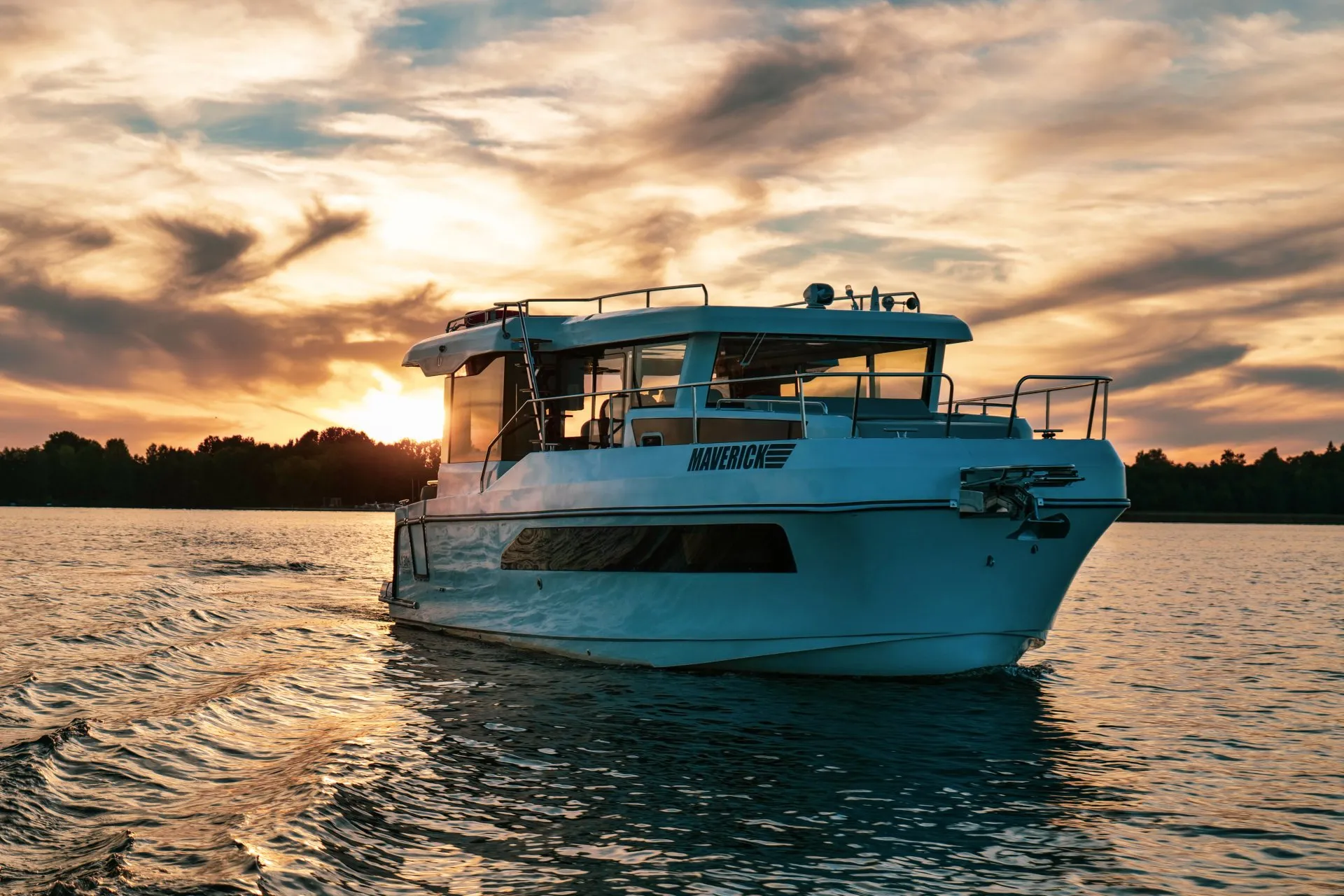

LY30+ FLY TRAWLER

Hull length overall (LOA): 9.60 m

Hull length LWL: 8.20 m

Beam: 3.49 m

Draft max.: 0.45 m

Height above waterline inc. mast: 3.10 m

Height above waterline excl. mast 2.80 m

Headroom approx.FWD CABIN: 1.95 m

2-person cabin: 2

Sleeping places: 4 + 2 occasional in the living room

WC cabin: 1

Shower cabin: 1

Fuel tank: 200 L

Fresh water tank: 200 L

Black water tank: 200 L

Weight (dry, without propulsion, crew and options): 5.500 kg

Number of engines max.: 2

Max engine power: 60-300 hp

Max people on board: 6/10

CE Category: C    (B category optional)

Outboard drive: up to 300hp

HULL and DECK

GRP hull:

Hand Laminated with PVC sandwich construction, isophthalic gelcoat,

Color: hull & deck: LY Pure White

Stainless Steel Handrails

Windows in the FWD, MID cabin, shower and toilet

Bow anchor hatch, electric windlass, anchor guide - stainless steel AISI 304 chain - 20 m, diameter 6 mm, anchor - 25 kg (DELTA), swivel

Anchor/Chain locker, self draining

6 mooring cleats (2 x bow, 2 x amidships, 2 x stern) Fixed Fender – Black profile with white rubber Deck, anti slip pattern - finish in VENDECK COCKPIT PANEL

Stainless steel tank inlets for fuel and water Waste water holding tank - deck outlet on transom - portboard, Stainless Steel AISI 316

Escape hatch for FWD cabin ( Aluminum Framed)

Gas bottle locker with drain

Lockable luggage hatch in the cockpit with actuators

Graphite side windows made of tempered glass

COCKPIT AND BATHING PLATFORM

Door in the passage: cockpit - salon: double-leaf sliding door from the cockpit to the salon & tilt window with actuator - tempered glass

Cockpit sofa with mattress and an L-shaped extension

+ mattress for extension

Cup holders: 4 pcs.

Self-draining cockpit

Bathing platform

Telescopic bathing ladder under the bathing platform

Cockpit shower with hot and cold water

Side port on the starboard side - in the cockpit

The lid of the storage compartment in the cockpit floor with an actuator

Door in the passage, bathing platform - cockpit on the port side, stainless steel AISI 316

Lighting, overhead (LED)

FLYBRIDGE - Upper solar deck

Starboard half-deck stair with railing

Handles for fixing the mattress

Sun deck mattresses

Handrails

TV / FM radio antenna VHF radio antenna

Halogen searchlight Electric Horn

Navigation lights & Anchor light

Flag pole, stainless steel

WHEELHOUSE

Radio Marine AM / FM CD / MP3 & 4 loudspeakers: 2 in the saloon and 2 in the cockpit

Single sliding door with black lacquered frame aluminum for access to the starboard deck

Steering wheel with hydraulic steering system

Curved tempered glass windshield Helmsman's right windscreen wiper

Compass

Helmsman's panel: bow thruster panel; searchlight panel; windlass on / off, electric horn; switches; engine gauges; level indicators for fresh water, black water, fuel and fuel tank for heating

Engine shifter - Gear shift control

Single helmsman's bench with backrest

Cup holder: 1 pc

SALON

Fully glazed living room (Surround windows)

Lighting, overhead (LED)

LED indirect floor lighting

Stairs to the lower deck

Lighting of stairs to cabins

Height-adjustable table

L-shaped sofa on the port side with conversion to the occasional bed

Furniture in HPL Wireless phone charger

USB socket; 2 x 230V socket

Smoke detector with

CO sensor

Lighting switches

Basic kitchen unit with upper cabinets

Furniture in HPL

Worktop - Solid Surface, sink with tempered glass cover, tap

2 burner gas cooker with a tempered glass cover

Cooker hood

80 L refrigerator (230V / 12V)

Lighting, overhead (LED)

Wastebasket

FWD CABIN

Furniture in HPL

Bed, double with storage under bed

Mattress

Lighting, overhead (LED)

USB socket; 2 x 230V socket Skylight, deck hatch - opening Wardrobe to port and starboard

Lockable upper cabinets to port and starboard

Mirror

Entrance lighting switch

Cabin door

AFT CABIN

Furniture in HPL

Bed, double with storage under bed

Mattress

Wardrobe to port and starboard

Shelf storage

Lighting, overhead (LED) USB socket; 1 x 230V socket

CABINS & DAY HEAD

Electric toilet

Mirror

Cabinet with sliding doors

Hand wash basin with mixer tap

Lighting, overhead (LED)

Clothes hook

Toilet roll holder

Fixed lower window

Openable upper window

GRP floor

SHOWER CABIN

Mirror

Lower cabinets

Lighting, overhead (LED)

Clothes hook

Fixed lower window

Openable upper window

GRP floor

ELECTRICAL EQUIPMENT e.g.:

2.2 kW bow thruster, control panel from the helmsman's position

AC system, 230 VAC with 230 VAC shore power connection Cable for 230V power supply from the wharf (20m)

DC system, 12 VDC

Main switchboard 230V AC and 12V DC with battery charge indicator

Lighting: outdoor and indoor - LED, 12VDC AGM engine battery (95Ah)

AGM household battery (95Ah) AGM bow thruster battery (95Ah) Battery charger 230V / 12V / 35A

Navigation lights & Anchor light - LED Electric Horn

Fresh water pump 12V DC- pressurized water system

Electric bilge pump

TECHNICAL EQUIPMENT e.g.:

Manual bilge pump in the cockpit

30 L water heater - without engine cooling circuit exchanger

Fresh water tank: 200 L

Black water tank: 200 L

Gas bottle locker with drain

Gas installation with a reducer

Gas leak detector

DECOR e.g.:

Upholstery, cushions: choice / material and color card

Floor: salon, corridor, cabins: Teak aspect lacquered

Companionway - lacquered stairs Teak aspect Wooden frames

Furniture: Wild oak (laminated board)

Mattresses - Standard in each cabin

MISCELLANEOUS e.g.:

Fenders 24 x 70 white 6 pcs.

Mooring rope with a loop 14 mm 10 m - 2 pcs. 210 cm wooden boat hook

Wooden paddle 160 cm

Lifebuoy

2 kg manual fire extinguisher 2 pcs

First aid kit

CE certificate

Owner manual LY30
